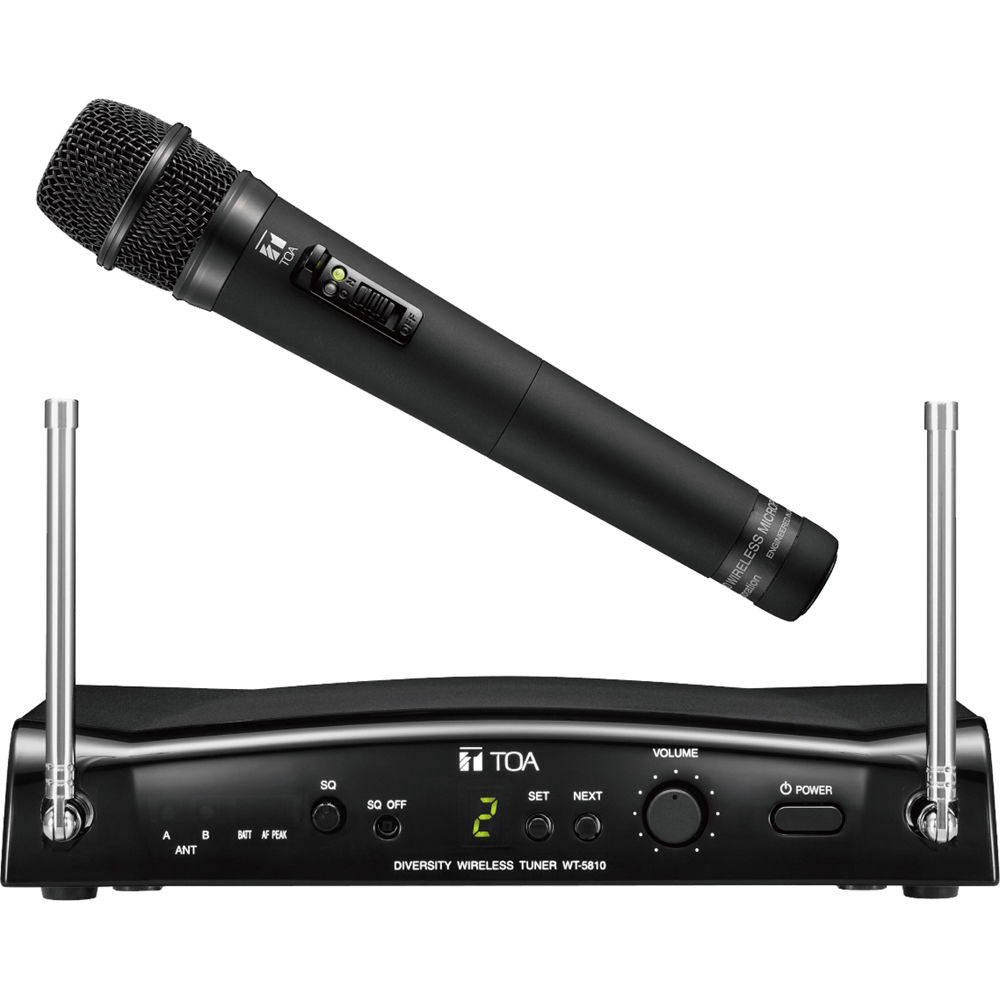

TOA WT-5810 WM-5225 UHF Wireless Microphone

TOA WT-5810 WM-5225 UHF Wireless Microphone Phased Lock Loop (PLL) synthesis operation 16 selectable channel frequencies TOA space diversity technology Double super–heterodyne receiving system Auto mixing input function Squelch function (carrier, noise, tone) Usable frequencies scanning channel search function Compact portable design Microphone sensitivity adjustment function Compander circuitry for minimizing ambient noise Rod antenna x 2 Balanced output (XLR connector) and phone jack output Low-battery indicator Operating range: 3m – 120m. Electret condenser cardiod microphone element. 16 selectable channel frequencies. Maximum input level: 126 dB SPL. ON/OFF switch prevents the microphone from rolling. Single AA battery operation for more compact and lightweight body. Low-battery indicator Built-in antenna POWER SOURCE AC mains (supplied AC adapter must be used) POWER CONSUMPTION 130 mA (12 V DC) RECEIVING FREQUENCY 576 – 865 MHz (*2), UHF CHANNEL SELECTABLE 16 channels RECEIVING SYSTEM Double super-heterodyne DIVERSITY SYSTEM Space diversity MIXING OUTPUT MIC: -60 dB (*1), 600 Ω, balanced, XLR-3-32 type connectorLINE: -20 dB (*1), 600 Ω, unbalanced, phone jack MIXING INPUT -20 dB (*1), 10 kΩ, unbalanced, phone jack ANTENNA Whip antenna RECEIVING SENSITIVITY 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) SQUELCH SENSITIVITY 16 – 40 dBμV variable SQUELCH SYSTEM Using together of noise SQ, carrier SQ and tone SQ TONE FREQUENCY 32.768 kHz INDICATOR ANT A/B, Audio (peak), Battery alarm, Channel number CHANNEL CHECK Usable frequencies scanning SIGNAL TO NOISE RATIO 104 dB or more (A-weight, unbalanced output) HARMONIC DISTORTION 1 % or less (typical) FREQUENCY RESPONSE 100 Hz – 15 kHz, ±3 dB OPERATING TEMPERATURE -10 ℃ to 50 ℃ (14 ゜F to 122 ゜F) OPERATING HUMIDITY 30 % to 85 %RH FINISH Resin, black DIMENSIONS 206 (W) × 40.6 (H) × 152.7 (D) mm (8.11″ × 1.6″ × 6.01″) (excluding antenna) WEIGHT 590 g (1.3 lb) ACCESSORY AC adapter (*3)…1
