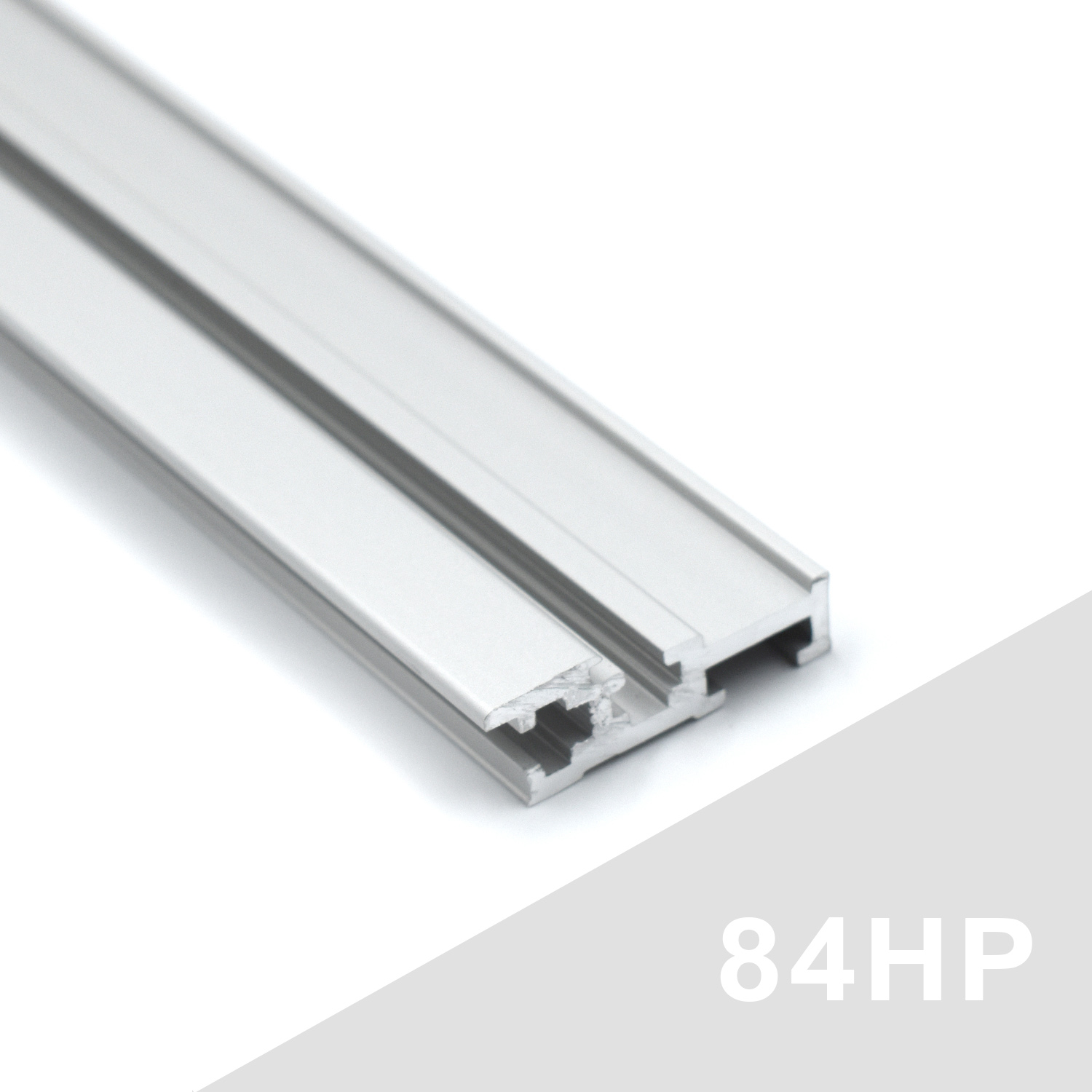

84HP Silver Eurorack Rail (one piece) for building your DIY eurorack case. These aluminium rails are anodized to natural aluminium/silver color – characteristic for most eurorack cases. Rails are equipped with a lip – for that reason, they are well suited for holding eurorack modules in place in perfectly aligned horizontal lines. EURORACK MODULES FIXING Besides rails, you will most likely also search for modules fixing to hold the modules securely in place. We’ve got you covered! Especially for that purpose, we have for you M3 Sliding Nuts or M3 Threaded Strips – all you need to do is to choose what is your preference. A suitable size of screws to fix the modules to the rail (assuming a modules face plate thickness of 2mm) is an M3 x 6mm or M3 x 8mm if a washer is used. To prevent scratches on the modules front panels we recommend using Anti Rack Rash Screws. INSTALLATION INSIDE EURORACK CASE You can install rails inside your case in two ways: First – you can drill holes in your case and fix the rails to the case sides using M5 bolts – you can find a wide range of bolts to choose from in Eurorack Accessories. Second – this method is perfect for everyone who wants to be sure that eurorack rails are perfectly spaced and who prefer to avoid drilling holes in your case. Use our 3D printed side brackets – we manufacture them in all possible sizes: 1U (Pulp Logic standard) | 1U (Intellijel standard) | 3U | 4U (Pulp Logic standard) | 4U (Intellijel standard) | 6U EURORACK RAILS LENGHT 84 HP – 427mm / 16.81″ 104 HP – 529mm / 20.82″ 114 HP – 579mm / 22.79″ 126 HP – 640mm / 25.19″ 168 HP – 854mm / 33.62″ 196 HP – 996mm / 39.21″ IMPORTANT NOTE Listing price is per single 84HP Silver Eurorack Rail FAQ “How many slide nuts should I use? “ We recommend to use at least one slide nut per every 4HP of eurorack rail: 84 HP = 21 slide nuts 104 HP = 26 slide nuts 114 HP = 29 slide nuts 126 HP = 32 slide nuts 168 HP = 42 slide nuts 196 HP = 49 slide nuts
