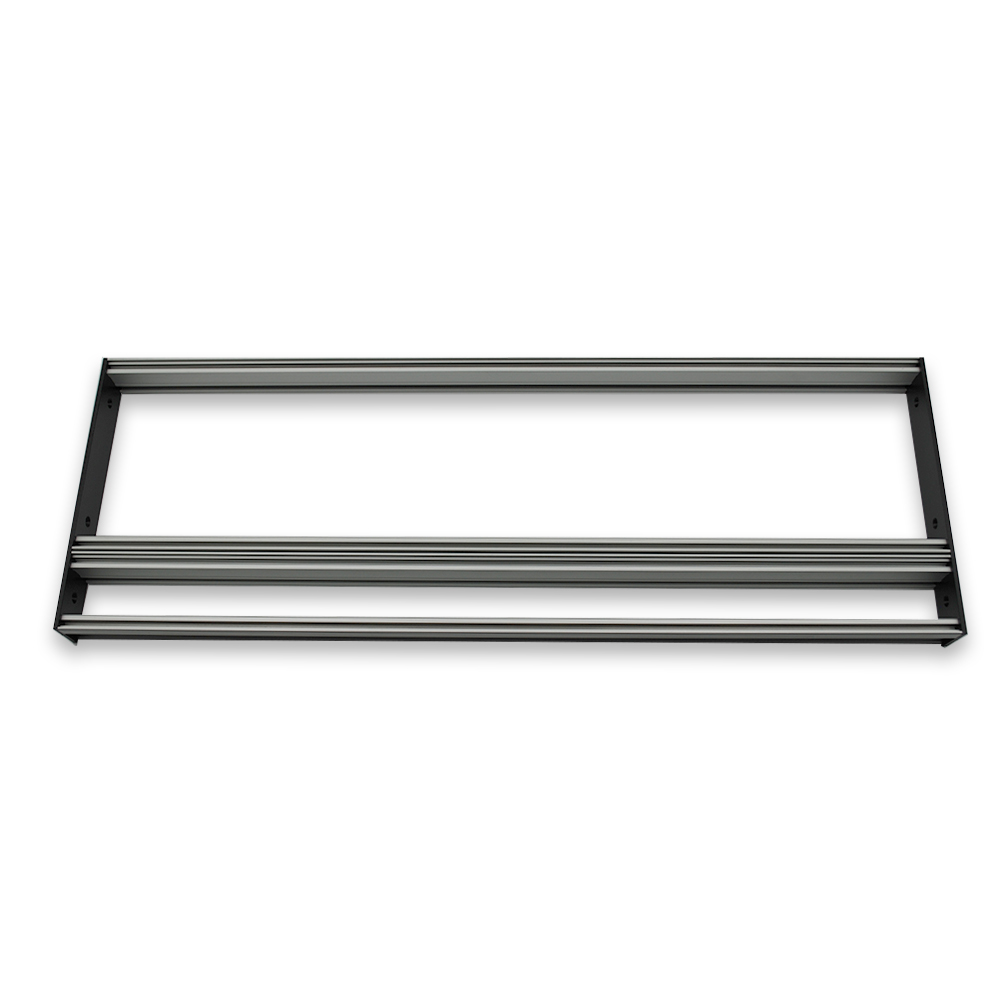

4U Eurorack Rails Set, STANDARD SIZE, 84-196HP, SILVER

Complete eurorack rails frameset to build a 4U (3U 1U) section in eurorack case. Simple assembly thanks to self-tapping screws, perfectly sized countersunk holes, and specially designed side brackets. IMPORTANT NOTE 1U section of this eurorack frame is made for standard (Pulp Logic) size 1U tile modules. Frame for Intellijel 1U module sizes is available here: 1U Intellijel Size Frame DETAILS 4 x eurorack rail with lip 2 x black plastic side brackets to form a correctly sized frame and connect rails together 8 x M5 bolts to fasten the rails to the side plates 6 x woodscrew 3mm to fasten the rail set to your case 4 x threaded inserts or set of sliding nuts FRAME LENGTH 84 HP – 433mm 104 HP – 535mm 114 HP – 585mm 126 HP – 646mm 168 HP – 860mm 196 HP – 1002mm FAQ How many slide nuts will I get with rail set?  We recommend to use one slide nut per every 4HP per rail: 84 HP = 84 slide nuts 104 HP = 104 slide nuts 114 HP = 114 slide nuts 126 HP = 126 slide nuts 168 HP = 168 slide nuts 196 HP = 196 slide nuts
